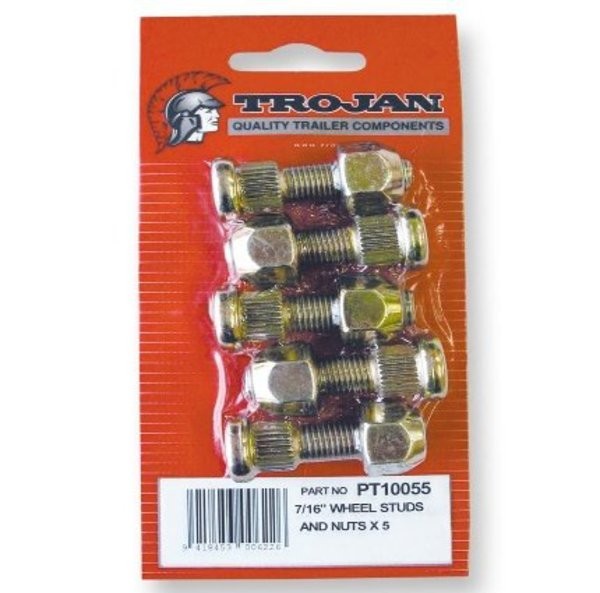

Trojan Trailer Wheel Studs And Nuts

The splined type and are a press fit into holes drilled in the hubs. Early model studs had a smaller diameter spline than the current versions but are now unavailable. To fit the current studs, the holes in the hubs will need to be redrilled to 13.75mm or 17/32". Trojan Wheel Nuts have tapered seats and suit all common wheels. Zinc plated. SPECIFICATIONS: UNIT: PKT 5 THREAD: 7/16" UNF NUT HEX AF: 3/4" STUD LENGTH:40mm DRILL DIA: 13.75mm TAPER: 60o FINISH: Zinc
